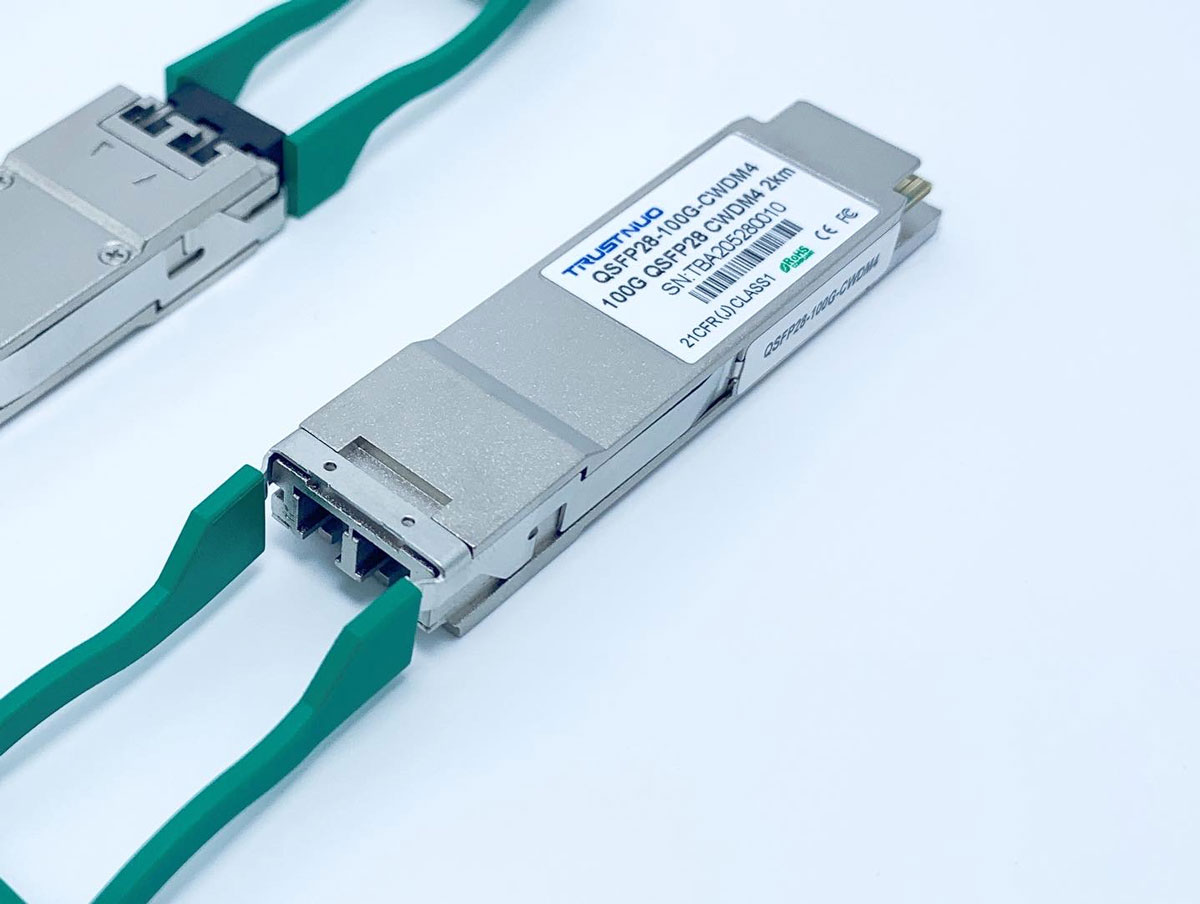

QSFP28-100G-CWDM4

QSFP28-100G-CWDM4

Products > Transceiver > 100G Single-mode >

QSFP28-100G-CWDM4

P/N : QSFP28-100G-CWDM4

● QSFP28 MSA compliant
● Compliant to IEEE 802.3bm 100GBASE-SR4
● Up to 28Gb/s data rate per channel
● Up to 2km SMF transmission
● 4 independent full-duplex channels
● Operating case temperature: 0 to 70℃
● Single 3.3V power supply
● Maximum power consumption 3.5W
● Duplex LC optical connector
● RoHS-6 compliant

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

1. High density interconnectivity
2. Supports 100Gb/s data rate links up to 2km on a Singlemode Fiber (SMF)
3. Industry standard QSFP28 form factor
4. Power Dissipation < 3.5W
5. Single 3.3V Power Supply
6. Compliant with the 100G CWDM4 MSA Technical Specification
7. Built-in digital diagnostic functions
8. Temperature range 0°C to 70°C
9. RoHS compliant part
10. Support FEC(Forward Error Correction)

Features

● QSFP28 MSA compliant
● Compliant to IEEE 802.3bm 100GBASE-SR4
● Up to 28Gb/s data rate per channel
● Up to 2km SMF transmission
● 4 independent full-duplex channels
● Operating case temperature: 0 to 70℃
● Single 3.3V power supply
● Maximum power consumption 3.5W
● Duplex LC optical connector
● RoHS-6 compliant

Parameter

Optical Transceivers
Part Number	QSFP28-100G-CWDM4
Trustnuo Part Number	TNQ2CW6XL-CD203
DESCRIPTION	100G QSFP28 Single-Mode 2KM
Data Rate (Mbps)	100G
Wavelength (nm)	1310nm
Distance	2KM
Optical Power (dBm)	-4.3~4.5
Source	EML
Sensitivity (dBm)	<-6.8
Receiver	PIN
Connector type	LC
