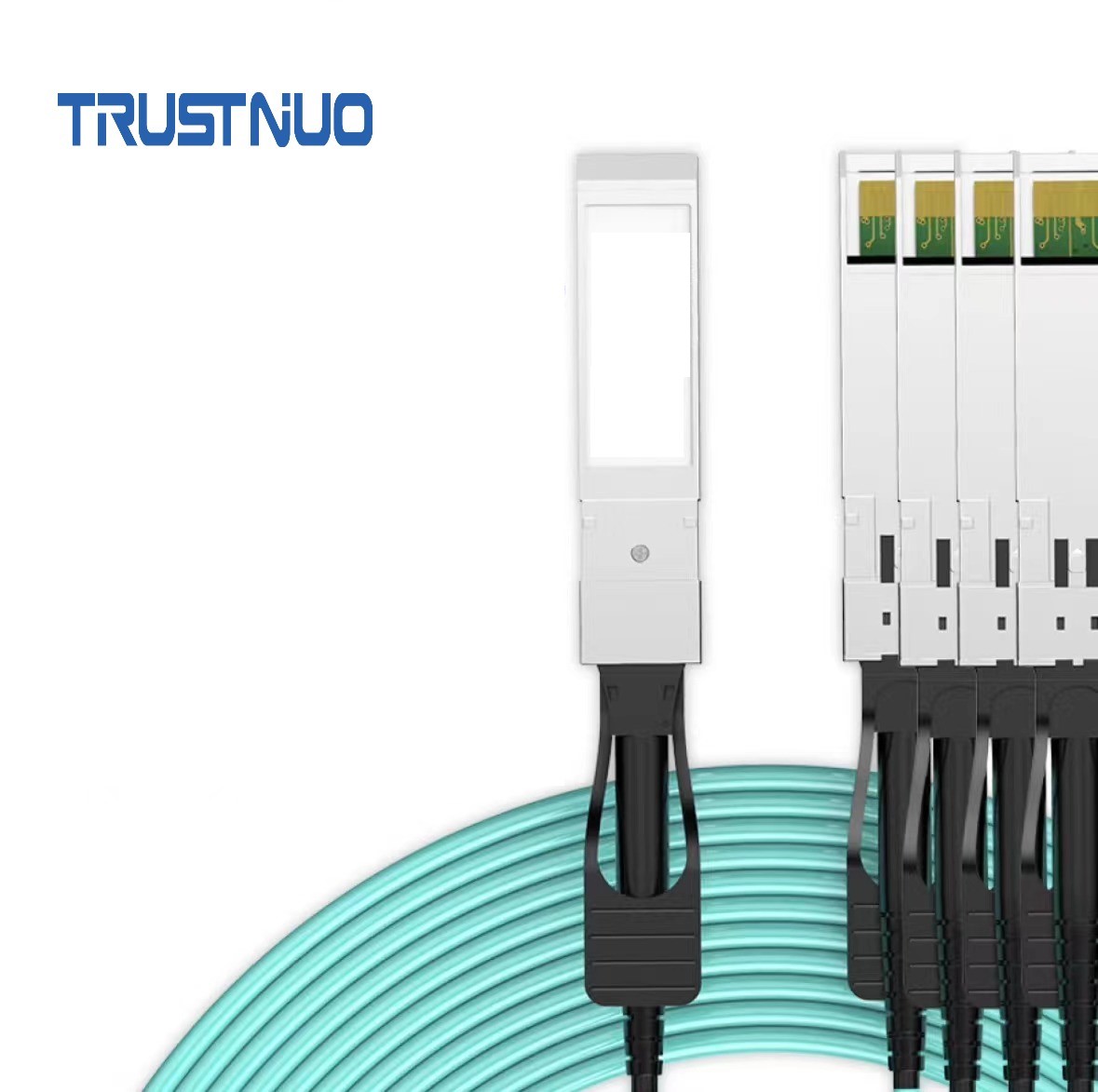

400G QSFP56 DD-4xQSFP56 AOC

P/N : 400G QSFP56 DD-4xQSFP56 AOC

1. Hot-plug QSFP56-DD and QSFP56 form factor
2. 8x 50Gb/s PAM4 modulation
3. Low power dissipation <9W (400G End)
4. Low power dissipation <4.5W (100G End)
5. RoHS-6 compliant (lead-free)
6. Commercial case temperature range of 0°C to 70°C
7. Single 3.3V power supply
8. Maximum link length of 70m on OM3 MMF and 100m on OM4 & OM5 MMF
9. Uncooled 850nm VCSEL array (both End)
10. PIN photo detector array (both End)
11. 400GBASE-SR8 and 100GBASE-SR2 compliant
12. I2C management interface
13. CMIS V4.0 compliant

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

Trustnuo TADDAX4Q56X-CDXXX MMF Active Optical Splitter Cable is used in 4 X 100 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber, which provides connectivity between system units with a 400GbE connector on one side and four separate 100GbE connectors on the other four sides. The cable connects data signals from each of the 8 MMF (Multi Mode Fiber) pairs on the single QSFP56-DD end to the dual pair of each of the QSFP56 multiport ends.

Features

1. Hot-plug QSFP56-DD and QSFP56 form factor
2. 8x 50Gb/s PAM4 modulation
3. Low power dissipation <9W (400G End)
4. Low power dissipation <4.5W (100G End)
5. RoHS-6 compliant (lead-free)
6. Commercial case temperature range of 0°C to 70°C
7. Single 3.3V power supply
8. Maximum link length of 70m on OM3 MMF and 100m on OM4 & OM5 MMF
9. Uncooled 850nm VCSEL array (both End)
10. PIN photo detector array (both End)
11. 400GBASE-SR8 and 100GBASE-SR2 compliant
12. I2C management interface
13. CMIS V4.0 compliant
