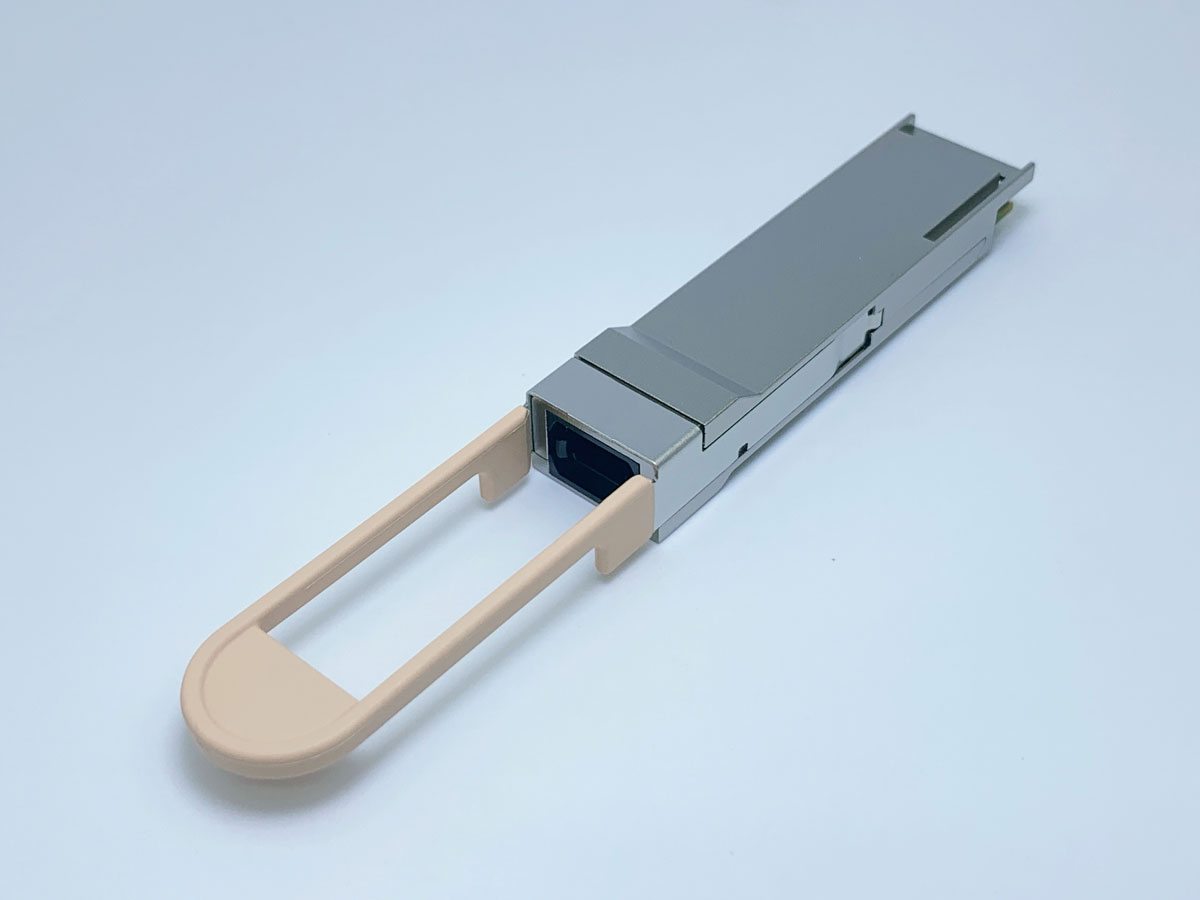

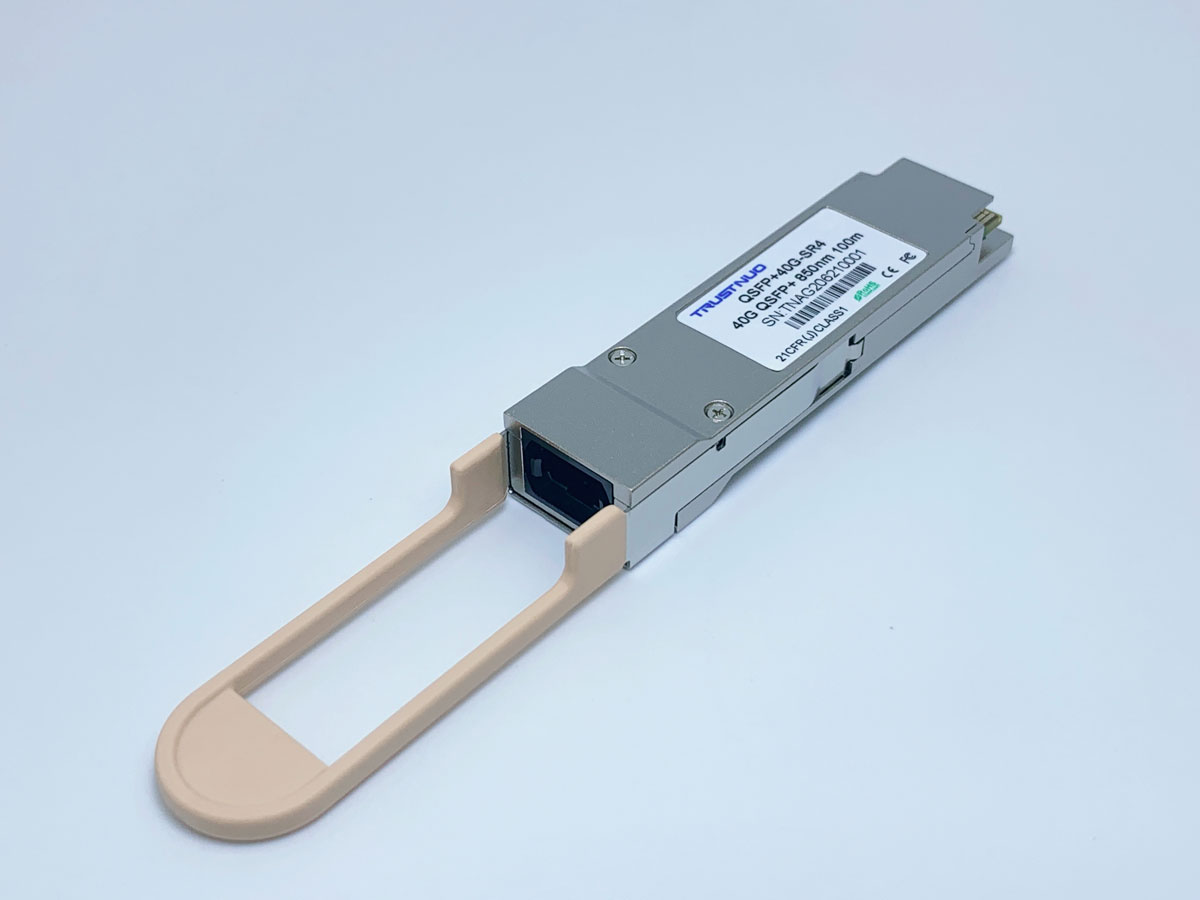

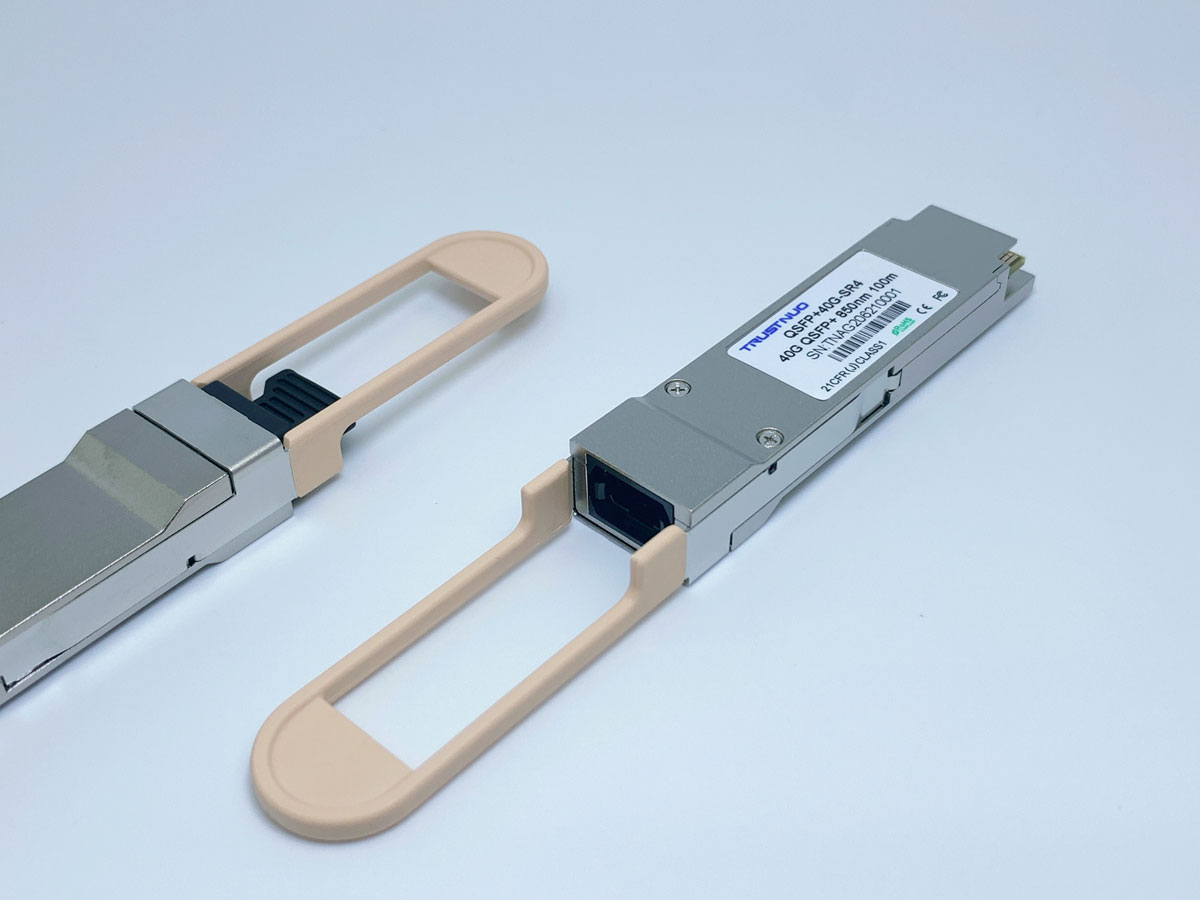

QSFP+40G-SR4

QSFP+40G-SR4

Products > Transceiver > 40G Multi-mode >

QSFP+40G-SR4

P/N : QSFP+40G-SR4

● Up to 11.2Gbps per channel bandwidth
● Aggregate bandwidth of > 40Gbps
● MPO/MTP-12 connector
● Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-SR4 Standard
● QSFP MSA compliant
● Up to 150m transmission
● Single +3.3V power supply operating
● Built-in digital diagnostic functions
● Temperature range 0°C to 70°C
● RoHS Compliant Part

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

1. It is mainly used in 40G Ethernet, Data Center.
2. It can transmit up to 150m.
3. It adopts 4*10G 850nm VCSEL.
4. Temperature range is 0℃~70℃.
5. It adopts MPO/MTP-12 connector, supports DDM funtion.

Features

● Up to 11.2Gbps per channel bandwidth
● Aggregate bandwidth of > 40Gbps
● MPO/MTP-12 connector
● Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-SR4 Standard
● QSFP MSA compliant
● Up to 150m transmission
● Single +3.3V power supply operating
● Built-in digital diagnostic functions
● Temperature range 0°C to 70°C
● RoHS Compliant Part

Parameter

QSFP+ 40G Optical Transceivers
Part Number	QSFP+40G-SR4
Trustnuo Part Number	TNQS854XM-CD150
DESCRIPTION	40G QSFP+ Multi-Mode Dual-fiber 150M
Data Rate (Mbps)	40G
Wavelength (nm)	850nm
Distance	150M
Optical Power (dBm)	-7.5-2.5
Source	VCSEL
Sensitivity (dBm)	<-9.5
Receiver	PIN
Connector type	MPO/MTP-12

Download

Datasheet-QSFP+_40G_SR4
