100Gb QSFP28 to 4x25G SFP28 AOC

  Products > AOC > 100Gb QSFP28 to 4x25G SFP28 AOC >
  • 100Gb QSFP28 to 4x25G SFP28 AOC

100Gb QSFP28 to 4x25G SFP28 AOC

P/N : 100Gb QSFP28 to 4x25G SFP28 AOC
1. SFF-8436 compliant QSFP28 connector
2. 4x SFF-8431 compliant SFP28 connectors
3. Hot-pluggable electrical interface 850nm VCSEL transmitter,
4. PIN photo-detector receiver
5. Internal CDR circuits on both receiver and transmitter channels
6. Low power consumption < 2.5W (QSFP28) < 1W (SFP28)
7. Length up to 70m using OM3 MMF and 100m using OM4 MMF
8. Operating case temperature range 0°C to +70°C
9. All-metal housing for superior EMI performance
10. RoHS-6 compliant (lead free)

If you want to know more about this product, please send us an email. We will get in touch with you immediately.

Overview

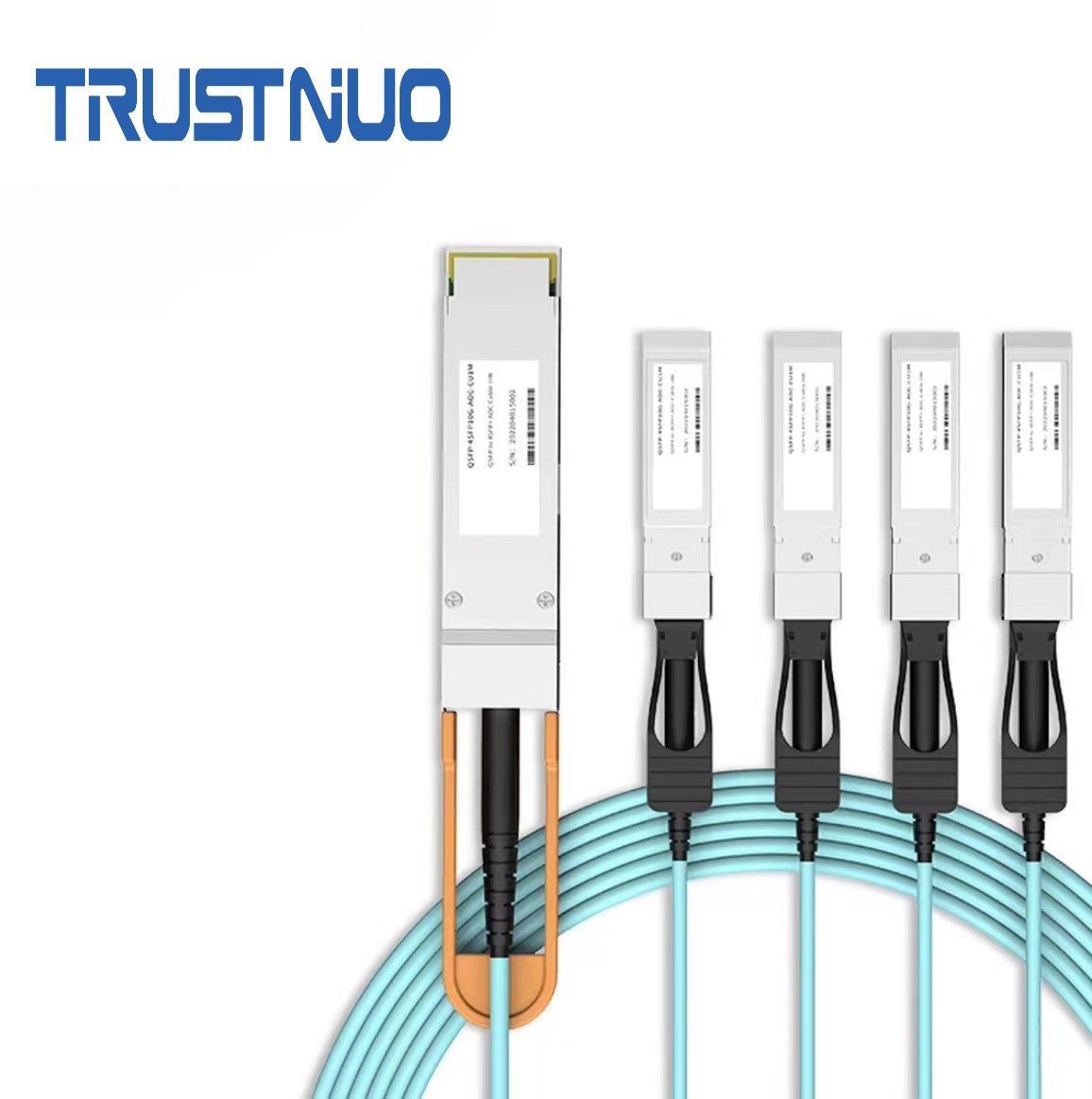

The 100G QSFP28 to 4x 25G SFP28 Active Optical Cables (AOC) offer IT professionals a cost-effective interconnect solution for merging 100G QSFP28 and 25G SFP28 enabled host adapters, switches and servers.For typical applications, users can install this breakout or splitter cable between an available QSFP28 port on 100GE switch and feed up to 4 upstream SFP28 enabled 25GE switches. Each cable features a single SFF-8436 compliant QSFP28 connector rated for 103Gb/s on one end and 4 SFF-8431 complicant SFP28 connectors rated for 25.78Gb/s each on the other end.

Features

1. SFF-8436 compliant QSFP28 connector
2. 4x SFF-8431 compliant SFP28 connectors
3. Hot-pluggable electrical interface 850nm VCSEL transmitter,
4. PIN photo-detector receiver
5. Internal CDR circuits on both receiver and transmitter channels
6. Low power consumption < 2.5W (QSFP28) < 1W (SFP28)
7. Length up to 70m using OM3 MMF and 100m using OM4 MMF
8. Operating case temperature range 0°C to +70°C
9. All-metal housing for superior EMI performance
10. RoHS-6 compliant (lead free)

Parameter

Download

100Gb QSFP28 to 4x25G SFP28 AOC
